016


DIN 968

PHILIPS PAN WASHER HEAD SELF TAPPING SCREWS TYPE C



Self-tapping screws are mainly used for screwing on metal sheets and laminates through simple drilling, without threading or tapping operations. These screws are not particularly suitable for use on die-cast materials and plastic materials. For a safe and stable screwing, particular attention must be paid to the diameter of the hole to be drilled. A small hole in which the screw "forces" to enter is certainly not synonymous with greater guarantee in fixing. It should also be remembered that the existing tables are empirical and only give an indication of perforation, but they are not a certain rule, as the fixing must be checked from time to time according to the technical-mechanical conditions of the particular that will be tighten.

The large head favors a wider sealing surface as well as the possible covering of through holes in case of sandwich coupling between two sheets, while the low profile and without edges makes them particularly suitable in "visible" applications. This screw has wide fields of application ranging from the mechanical sector to the household appliance, from the automotive to the aluminum window frame.

The washer that seems pre-assembled adds a further aesthetic value.

The length of the screw is measured from the tip to the underhead.

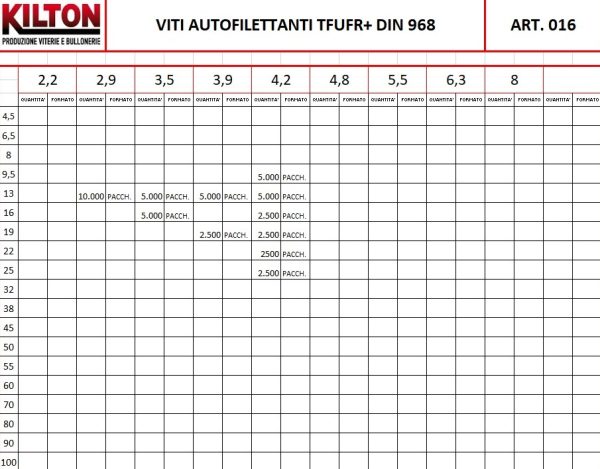

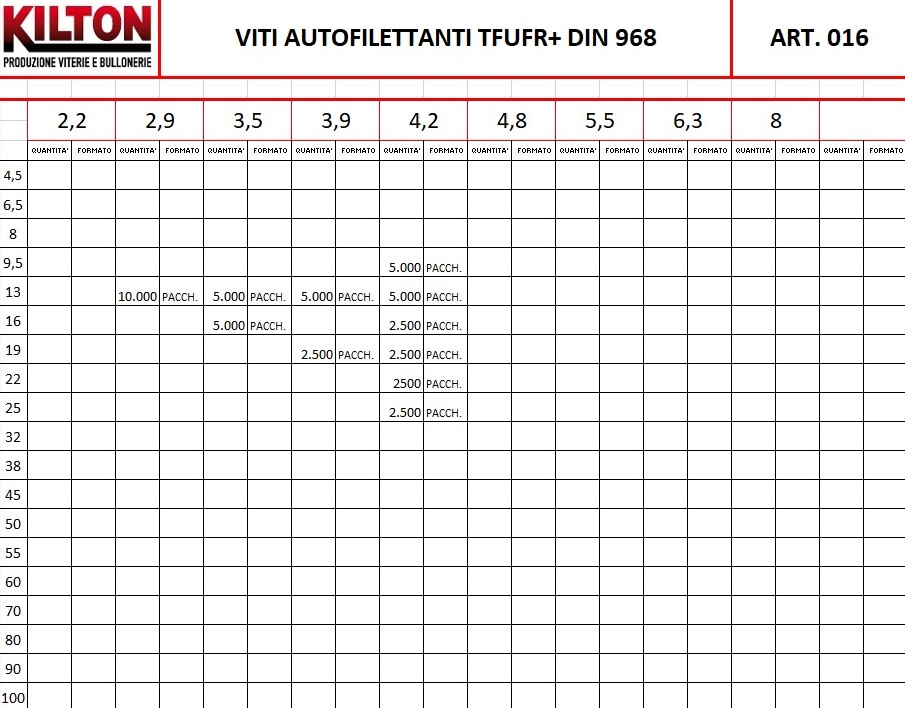

Code Description Availability Certifications Request offer
016.29065ZN VITI AUTOFILETTANTI 2.9X6.5 TFUFR+ DIN 968 ZINCATE Cr.3 62800.0
016.29095ZN VITI AUTOFILETTANTI 2.9X9.5 TFUFR+ DIN 968 ZINCATE Cr.3 216100.0
016.29130ZN VITI AUTOFILETTANTI 2.9X 13 TFUFR+ DIN 968 ZINCATE Cr.3 72000.0
016.29160ZN VITI AUTOFILETTANTI 2.9X 16 TFUFR+ DIN 968 ZINCATE Cr.3 0.0
016.35065ZN VITI AUTOFILETTANTI 3.5X6.5 TFUFR+ DIN 968 ZINCATE Cr.3 232480.0
016.35095ZN VITI AUTOFILETTANTI 3.5X9.5 TFUFR+ DIN 968 ZINCATE Cr.3 268600.0
016.35130ZN VITI AUTOFILETTANTI 3.5X 13 TFUFR+ DIN 968 ZINCATE Cr.3 290470.0
016.35130ZO VITI AUTOFILETTANTI 3.5X 13 TFUFR+ DIN 968 ZINCATE NERE CR3 0.0
016.35160ZN VITI AUTOFILETTANTI 3.5X 16 TFUFR+ DIN 968 ZINCATE Cr.3 294700.0
016.35160ZO VITI AUTOFILETTANTI 3.5X 16 TFUFR+ DIN 968 ZINCATE NERO Cr.3 0.0
016.35190ZN VITI AUTOFILETTANTI 3.5X 19 TFUFR+ DIN 968 ZINCATE Cr.3 71100.0
016.35220ZN VITI AUTOFILETTANTI 3.5X 22 TFUFR+ DIN 968 ZINCATE Cr.3 33000.0
016.35250ZN VITI AUTOFILETTANTI 3.5X 25 TFUFR+ DIN 968 ZINCATE Cr.3 52000.0
016.39095ZN VITI AUTOFILETTANTI 3.9X9.5 TFUFR+ DIN 968 ZINCATE Cr.3 213300.0
016.39130ZN VITI AUTOFILETTANTI 3.9X 13 TFUFR+ DIN 968 ZINCATE Cr.3 268200.0
016.39130ZO VITI AUTOFILETTANTI 3.9X 13 TFUFR+ DIN 968 Z. NERE Cr.3 0.0
016.39160ZN VITI AUTOFILETTANTI 3.9X 16 TFUFR+ DIN 968 ZINCATE Cr.3 0.0
016.39160ZO VITI AUTOFILETTANTI 3.9X 16 TFUFR+ DIN 968 Z. NERO Cr.3 0.0
016.39190ZN VITI AUTOFILETTANTI 3.9X 19 TFUFR+ DIN 968 ZINCATE Cr.3 7250.0
016.39190ZO VITI AUTOFILETTANTI 3.9X 19 TFUFR+ DIN 968 Z. NERO Cr.3 0.0
016.39220ZN VITI AUTOFILETTANTI 3.9X 22 TFUFR+ DIN 968 ZINCATE Cr.3 59000.0
016.39250ZN VITI AUTOFILETTANTI 3.9X 25 TFUFR+ DIN 968 ZINCATE Cr.3 26120.0
016.39320ZN VITI AUTOFILETTANTI 3.9X 32 TFUFR+ DIN 968 ZINCATE Cr.3 97550.0
016.42095ZN VITI AUTOFILETTANTI 4.2X9.5 TFUFR+ DIN 968 ZINCATE Cr.3 576670.0
016.42130ZN VITI AUTOFILETTANTI 4.2X 13 TFUFR+ DIN 968 ZINCATE Cr.3 470050.0
016.42160ZN VITI AUTOFILETTANTI 4.2X 16 TFUFR+ DIN 968 ZINCATE Cr.3 145330.0
016.42190ZN VITI AUTOFILETTANTI 4.2X 19 TFUFR+ DIN 968 ZINCATE Cr.3 301650.0
016.42190ZO VITI AUTOFILETTANTI 4.2X 19 TFUFR+ DIN 968 Z. NERE Cr.3 0.0
016.42220ZN VITI AUTOFILETTANTI 4.2X 22 TFUFR+ DIN 968 ZINCATE Cr.3 190500.0
016.42220ZO VITI AUTOFILETTANTI 4.2X 22 TFUFR+ DIN 968 ZINCATE NERE Cr.3 0.0
016.42250ZN VITI AUTOFILETTANTI 4.2X 25 TFUFR+ DIN 968 ZINCATE Cr.3 10000.0
016.42380ZN VITI AUTOFILETTANTI 4.2X 38 TFUFR+ DIN 968 ZINCATE Cr.3 103640.0
016.48130ZN VITI AUTOFILETTANTI 4.8X 13 TFUFR+ DIN 968 ZINCATE Cr.3 85800.0
016.48160ZN VITI AUTOFILETTANTI 4.8X 16 TFUFR+ DIN 968 ZINCATE Cr.3 195000.0
016.48160ZO VITI AUTOFILETTANTI 4.8X 16 TFUFR+ DIN 968 Z.NERE Cr.3 0.0
016.48190ZN VITI AUTOFILETTANTI 4.8X 19 TFUFR+ DIN 968 ZINCATE Cr.3 202150.0
016.48220ZN VITI AUTOFILETTANTI 4.8X 22 TFUFR+ DIN 968 ZINCATE Cr.3 88350.0
016.48250ZN VITI AUTOFILETTANTI 4.8X 25 TFUFR+ DIN 968 ZINCATE Cr.3 152360.0
016.48250ZO VITI AUTOFILETTANTI 4.8X 25 TFUFR+ DIN 968 Z. NERE Cr.3 0.0
