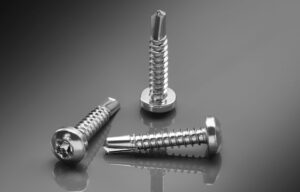

The self-drilling screws are mainly used for screwing on metal sheets and laminates without the need for pre-drilling thanks to their tip that allows you to drill and thread in a single operation, ensuring a high reduction in assembly times and labor used. The ability to drill even important thicknesses is given by the length of the tip. In order to correctly discharge the chips, the thickness of the material to be drilled should be at least 1-1.5mm less than the size of the bit.
The use of Torx allows to transmit a higher tightening torque than other impressions. It is a universal type of impression, unlike the specific ones that are used in the various countries of the world (cross, philips, pozi, slotted, square impressions and so on). Torx is particularly suitable for diameters from 4 upwards; applying it on smaller diameters is not particularly recommended as the reduced depth of the impression with respect to a cross can create problems during assembly. Precisely for this reason, if they are not mounted perfectly in line with the holes and with the screwdriver, the insert could escape from the screw seat.
The length of the screw is measured from the tip to the underhead.
Code
Description
Availability
Certifications
Request offer
041TX.29130ZN
VITI AUTOPERFORANTI 2.9X 13 TC TORX DIN 7504-N ZINCATE Cr.3
64000.0
041TX.29160ZN
VITI AUTOPERFORANTI 2.9X 16 TC TORX DIN 7504-N ZINCATE Cr.3
77000.0
041TX.29190ZN
VITI AUTOPERFORANTI 2.9X 19 TC TORX DIN 7504-N ZINCATE Cr.3
73000.0
041TX.35095ZN
VITI AUTOPERFORANTI 3.5X9.5 TC TORX DIN 7504-N ZINCATE Cr.3
265400.0
041TX.35130ZN
VITI AUTOPERFORANTI 3.5X 13 TC TORX DIN 7504-N ZINCATE Cr.3
78000.0
041TX.35160ZN
VITI AUTOPERFORANTI 3.5X 16 TC TORX DIN 7504-N ZINCATE Cr.3
302000.0
041TX.35190ZN
VITI AUTOPERFORANTI 3.5X 19 TC TORX DIN 7504-N ZINCATE Cr.3
78000.0
041TX.35220ZN
VITI AUTOPERFORANTI 3.5X 22 TC TORX DIN 7504-N ZINCATE Cr.3
96000.0
041TX.35250ZN
VITI AUTOPERFORANTI 3.5X 25 TC TORX DIN 7504-N ZINCATE Cr.3
81000.0
041TX.39130ZN
VITI AUTOPERFORANTI 3.9X 13 TC TORX DIN 7504-N ZINCATE Cr.3
101000.0
041TX.39160ZN
VITI AUTOPERFORANTI 3.9X 16 TC TORX DIN 7504-N ZINCATE Cr.3
97000.0
041TX.39190ZN
VITI AUTOPERFORANTI 3.9X 19 TC TORX DIN 7504-N ZINCATE Cr.3
63000.0
041TX.39220ZN
VITI AUTOPERFORANTI 3.9X 22 TC TORX DIN 7504-N ZINCATE Cr.3
55000.0
041TX.39250ZN
VITI AUTOPERFORANTI 3.9X 25 TC TORX DIN 7504-N ZINCATE Cr.3
99000.0
041TX.39320ZN
VITI AUTOPERFORANTI 3.9X 32 TC TORX DIN 7504-N ZINCATE Cr.3
101500.0
041TX.42130ZN
VITI AUTOPERFORANTI 4.2X 13 TC TORX DIN 7504-N ZINCATE Cr.3
389500.0
041TX.42160ZN
VITI AUTOPERFORANTI 4.2X 16 TC TORX DIN 7504-N ZINCATE Cr.3
62000.0
041TX.42190ZN
VITI AUTOPERFORANTI 4.2X 19 TC TORX DIN 7504-N ZINCATE Cr.3
109572.0
041TX.42220ZN
VITI AUTOPERFORANTI 4.2X 22 TC TORX DIN 7504-N ZINCATE Cr.3
100000.0
041TX.42250ZN
VITI AUTOPERFORANTI 4.2X 25 TC TORX DIN 7504-N ZINCATE Cr.3
94000.0
041TX.42320ZN
VITI AUTOPERFORANTI 4.2X 32 TC TORX DIN 7504-N ZINCATE Cr.3
52000.0
041TX.42380ZN
VITI AUTOPERFORANTI 4.2X 38 TC TORX DIN 7504-N ZINCATE Cr.3
51000.0
041TX.42450ZN
VITI AUTOPERFORANTI 4.2X 45 TC TORX DIN 7504-N ZINCATE Cr.3
50500.0
041TX.42500ZN
VITI AUTOPERFORANTI 4.2X 50 TC TORX DIN 7504-N ZINCATE Cr.3
51500.0
041TX.48130ZN
VITI AUTOPERFORANTI 4.8X 13 TC TORX DIN 7504-N ZINCATE Cr.3
99000.0
041TX.48160ZN
VITI AUTOPERFORANTI 4.8X 16 TC TORX DIN 7504-N ZINCATE Cr.3
123500.0
041TX.48190ZN
VITI AUTOPERFORANTI 4.8X 19 TC TORX DIN 7504-N ZINCATE Cr.3
84000.0
041TX.48220ZN
VITI AUTOPERFORANTI 4.8X 22 TC TORX DIN 7504-N ZINCATE Cr.3
84000.0
041TX.48250ZN
VITI AUTOPERFORANTI 4.8X 25 TC TORX DIN 7504-N ZINCATE Cr.3
27500.0
041TX.48320ZN
VITI AUTOPERFORANTI 4.8X 32 TC TORX DIN 7504-N ZINCATE Cr.3
107900.0
041TX.48380ZN
VITI AUTOPERFORANTI 4.8X 38 TC TORX DIN 7504-N ZINCATE Cr.3
93000.0
041TX.48450ZN
VITI AUTOPERFORANTI 4.8X 45 TC TORX DIN 7504-N ZINCATE Cr.3
48800.0
041TX.48500ZN
VITI AUTOPERFORANTI 4.8X 50 TC TORX DIN 7504-N ZINCATE Cr.3
36600.0
041TX.48600ZN
VITI AUTOPERFORANTI 4.8X 60 TC TORX DIN 7504-N ZINCATE Cr.3
44800.0
041TX.55160ZN
VITI AUTOPERFORANTI 5.5X 16 TC TORX DIN 7504-N ZINCATE Cr.3
40500.0
041TX.55190ZN
VITI AUTOPERFORANTI 5.5X 19 TC TORX DIN 7504-N ZINCATE Cr.3
102600.0
041TX.55220ZN
VITI AUTOPERFORANTI 5.5X 22 TC TORX DIN 7504-N ZINCATE Cr.3
27400.0
041TX.55250VN
VITI AUTOPERFORANTI 5.5X 25 TC TORX DIN 7504-N ZINCATE Cr.3+VERN
0.0
041TX.55250ZN
VITI AUTOPERFORANTI 5.5X 25 TC TORX DIN 7504-N ZINCATE Cr.3
31000.0
041TX.55320ZN
VITI AUTOPERFORANTI 5.5X 32 TC TORX DIN 7504-N ZINCATE Cr.3
48600.0
041TX.55380ZN
VITI AUTOPERFORANTI 5.5X 38 TC TORX DIN 7504-N ZINCATE Cr.3
48000.0
041TX.55450ZN
VITI AUTOPERFORANTI 5.5X 45 TC TORX DIN 7504-N ZINCATE Cr.3
30200.0
041TX.55500ZN
VITI AUTOPERFORANTI 5.5X 50 TC TORX DIN 7504-N ZINCATE Cr.3
28200.0
041TX.55600ZN
VITI AUTOPERFORANTI 5.5X 60 TC TORX DIN 7504-N ZINCATE Cr.3
16000.0
041TX.55700ZN
VITI AUTOPERFORANTI 5.5X 70/60 TC TORX DIN 7504-N ZINCATE Cr.3
14400.0
041TX.55800ZN
VITI AUTOPERFORANTI 5.5X 80/60 TC TORX DIN 7504-N ZINCATE Cr.3
