041

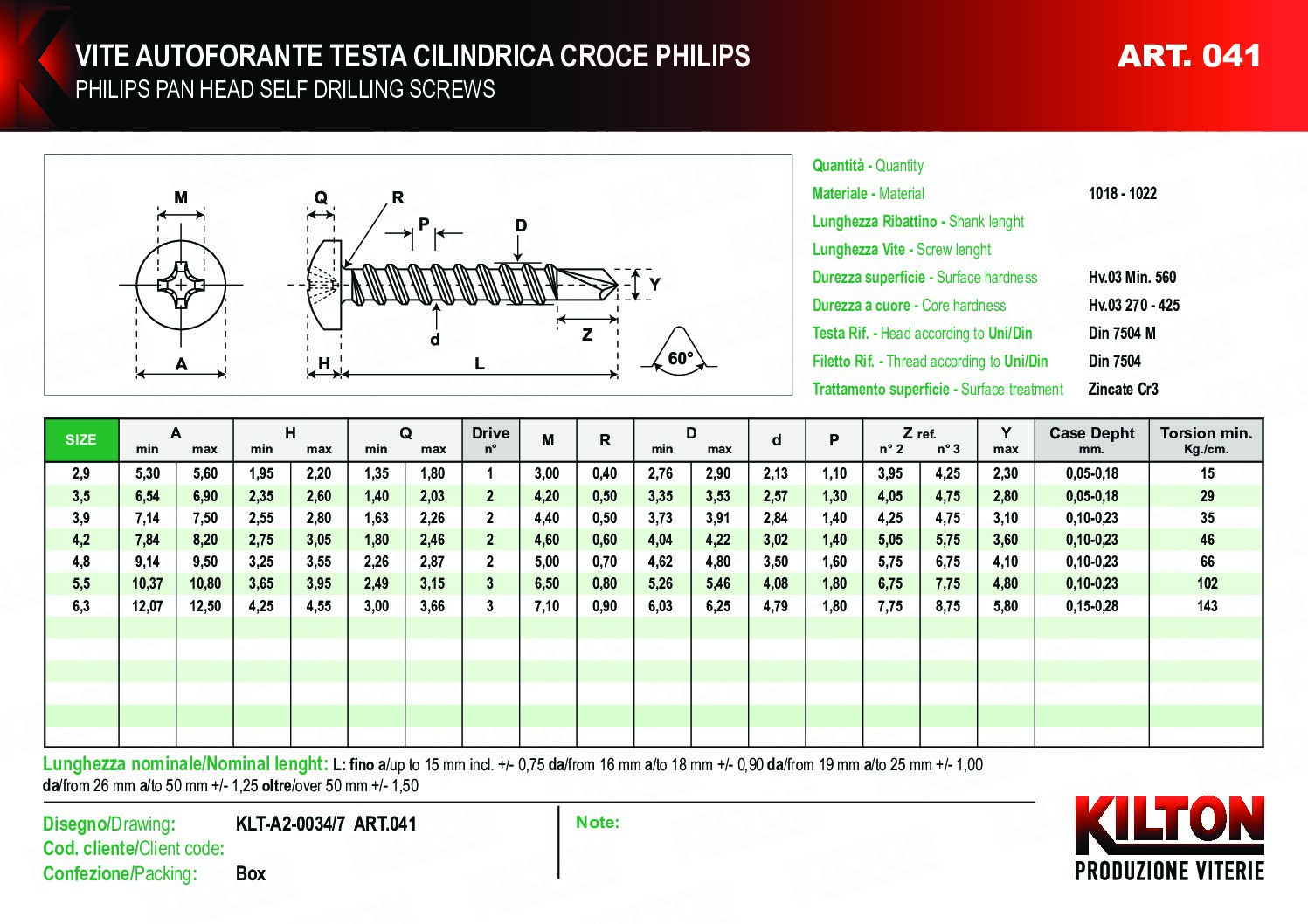

UNI 8118 - DIN 7504/M(ex N) - ISO 15481

SELF-DRILLING SCREWS CYLINDRICAL HEAD IMPRESSION CROSS PHILIPS







The self-drilling screws are mainly used for screwing on metal sheets and laminates without the need for pre-drilled holes thanks to their tip that allows you to drill and thread in a single operation ensuring a high reduction in assembly times and the labor used. The ability to drill even important thicknesses is given by the length of the tip. In order to correctly discharge the chips, the thickness of the material to be drilled should be at least 1-1.5mm less than the size of the bit.

The length of the screw is measured from the tip to the underhead.

Code Description Availability Certifications Request offer
041.29095ZN VITI AUTOPERFORANTI 2.9X 9.5 TC+ DIN 7504-N ZINCATE Cr.3 420100.0
041.29130ZN VITI AUTOPERFORANTI 2.9X 13 TC+ DIN 7504-N ZINCATE Cr.3 235000.0
041.29130ZO VITI AUTOPERFORANTI 2.9X 13 TC+ DIN 7504-N Z.NERE Cr.3 0.0
041.29160ZN VITI AUTOPERFORANTI 2.9X 16 TC+ DIN 7504-N ZINCATE Cr.3 230000.0
041.29190ZN VITI AUTOPERFORANTI 2.9X 19 TC+ DIN 7504-N ZINCATE Cr.3 267200.0
041.35095ZN VITI AUTOPERFORANTI 3.5X 9.5 TC+ DIN 7504-N ZINCATE Cr.3 148200.0
041.35095ZO VITI AUTOPERFORANTI 3.5X 9.5 TC+ DIN 7504-N Z.NERE 0.0
041.35130ZN VITI AUTOPERFORANTI 3.5X 13 TC+ DIN 7504-N ZINCATE Cr.3 148000.0
041.35160ZN VITI AUTOPERFORANTI 3.5X 16 TC+ DIN 7504-N ZINCATE Cr.3 185000.0
041.35190ZN VITI AUTOPERFORANTI 3.5X 19 TC+ DIN 7504-N ZINCATE Cr.3 113250.0
041.35220ZN VITI AUTOPERFORANTI 3.5X 22 TC+ DIN 7504-N ZINCATE Cr.3 294000.0
041.35250ZN VITI AUTOPERFORANTI 3.5X 25 TC+ DIN 7504-N ZINCATE Cr.3 0.0
041.35320ZN VITI AUTOPERFORANTI 3.5X 32 TC+ DIN 7504-N ZINCATE Cr.3 24000.0
041.39095ZN VITI AUTOPERFORANTI 3.9X 9.5 TC+ DIN 7504-N ZINCATE Cr.3 224000.0
041.39130ZN VITI AUTOPERFORANTI 3.9X 13 TC+ DIN 7504-N ZINCATE Cr.3 0.0
041.39130ZO VITI AUTOPERFORANTI 3.9X 13 TC+ DIN 7504-N Z.NERE Cr.3 0.0
041.39160ZN VITI AUTOPERFORANTI 3.9X 16 TC+ DIN 7504-N ZINCATE Cr.3 113200.0
041.39190ZN VITI AUTOPERFORANTI 3.9X 19 TC+ DIN 7504-N ZINCATE Cr.3 115050.0
041.39190ZO VITI AUTOPERFORANTI 3.9X 19 TC+ DIN 7504-N Z. NERO Cr.3 0.0
041.39220ZN VITI AUTOPERFORANTI 3.9X 22 TC+ DIN 7504-N ZINCATE Cr.3 50000.0
041.39250ZN VITI AUTOPERFORANTI 3.9X 25 TC+ DIN 7504-N ZINCATE Cr.3 100100.0
041.39320ZN VITI AUTOPERFORANTI 3.9X 32 TC+ DIN 7504-N ZINCATE Cr.3 95950.0
041.39380ZN VITI AUTOPERFORANTI 3.9X 38 TC+ DIN 7504-N ZINCATE Cr.3 32500.0
041.39450ZN VITI AUTOPERFORANTI 3.9X 45 TC+ DIN 7504-N ZINCATE Cr.3 0.0
041.39500ZN VITI AUTOPERFORANTI 3.9X 50 TC+ DIN 7504-N ZINCATE Cr.3 0.0
041.42095ZN VITI AUTOPERFORANTI 4.2X 9.5 TC+ DIN 7504-N ZINCATE Cr.3 219600.0
041.42130BU VITI AUTOPERFORANTI 4.2X 13 TC+ DIN 7504-N BRUNITE 26400.0
041.42130ZN VITI AUTOPERFORANTI 4.2X 13 TC+ DIN 7504-N ZINCATE Cr.3 131450.0
041.42160ZN VITI AUTOPERFORANTI 4.2X 16 TC+ DIN 7504-N ZINCATE Cr.3 58200.0
041.42190ZN VITI AUTOPERFORANTI 4.2X 19 TC+ DIN 7504-N ZINCATE Cr.3 58600.0
041.42220ZN VITI AUTOPERFORANTI 4.2X 22 TC+ DIN 7504-N ZINCATE Cr.3 0.0
041.42250ZN VITI AUTOPERFORANTI 4.2X 25 TC+ DIN 7504-N ZINCATE Cr.3 85000.0
041.42320ZN VITI AUTOPERFORANTI 4.2X 32 TC+ DIN 7504-N ZINCATE Cr.3 105100.0
041.42380ZN VITI AUTOPERFORANTI 4.2X 38 TC+ DIN 7504-N ZINCATE Cr.3 106300.0
041.42450ZN VITI AUTOPERFORANTI 4.2X 45 TC+ DIN 7504-N ZINCATE Cr.3 111100.0
041.42500ZN VITI AUTOPERFORANTI 4.2X 50 TC+ DIN 7504-N ZINCATE Cr.3 56800.0
041.48130ZN VITI AUTOPERFORANTI 4.8X 13 TC+ DIN 7504-N ZINCATE Cr.3 83750.0
041.48160ZN VITI AUTOPERFORANTI 4.8X 16 TC+ DIN 7504-N ZINCATE Cr.3 105150.0
041.48190ZN VITI AUTOPERFORANTI 4.8X 19 TC+ DIN 7504-N ZINCATE Cr.3 0.0
041.48190ZO VITI AUTOPERFORANTI 4.8X 19 TC+ DIN 7504-N Z. NERE 0.0
041.48220ZN VITI AUTOPERFORANTI 4.8X 22 TC+ DIN 7504-N ZINCATE Cr.3 59800.0
041.48250ZN VITI AUTOPERFORANTI 4.8X 25 TC+ DIN 7504-N ZINCATE Cr.3 62550.0
041.48320ZN VITI AUTOPERFORANTI 4.8X 32 TC+ DIN 7504-N ZINCATE Cr.3 0.0
041.48380ZN VITI AUTOPERFORANTI 4.8X 38 TC+ DIN 7504-N ZINCATE Cr.3 0.0
041.48380ZO VITI AUTOPERFORANTI 4.8X 38 TC+ DIN 7504-N Z. NERO Cr.3 0.0
041.48450ZN VITI AUTOPERFORANTI 4.8X 45 TC+ DIN 7504-N ZINCATE Cr.3 53300.0
041.48450ZO VITI AUTOPERFORANTI 4.8X 45 TC+ DIN 7504-N Z. NERO Cr.3 1000.0
041.48500ZN VITI AUTOPERFORANTI 4.8X 50 TC+ DIN 7504-N ZINCATE Cr.3 50680.0
041.48500ZO VITI AUTOPERFORANTI 4.8X 50 TC+ DIN 7504-N Z. NERO Cr.3 2290.0
041.48600ZN VITI AUTOPERFORANTI 4.8X 60 TC+ DIN 7504-N ZINCATE Cr.3 26000.0
041.48700ZN VITI AUTOPERFORANTI 4.8X 70 TC+ DIN 7504-N ZINCATE Cr.3 56800.0
041.48700ZO VITI AUTOPERFORANTI 4.8X 70 TC+ DIN 7504-N Z. NERO Cr.3 0.0
041.55160ZN VITI AUTOPERFORANTI 5.5X 16 TC+ DIN 7504-N ZINCATE Cr.3 30500.0
041.55190ZN VITI AUTOPERFORANTI 5.5X 19 TC+ DIN 7504-N ZINCATE Cr.3 55450.0
041.55220ZN VITI AUTOPERFORANTI 5.5X 22 TC+ DIN 7504-N ZINCATE Cr.3 47800.0
041.55250ZN VITI AUTOPERFORANTI 5.5X 25 TC+ DIN 7504-N ZINCATE Cr.3 68500.0
041.55320ZN VITI AUTOPERFORANTI 5.5X 32 TC+ DIN 7504-N ZINCATE Cr.3 54500.0
041.55380ZN VITI AUTOPERFORANTI 5.5X 38 TC+ DIN 7504-N ZINCATE Cr.3 33050.0
041.55450ZN VITI AUTOPERFORANTI 5.5X 45 TC+ DIN 7504-N ZINCATE Cr.3 53250.0
041.55500ZN VITI AUTOPERFORANTI 5.5X 50 TC+ DIN 7504-N ZINCATE Cr.3 44750.0
041.55600ZN VITI AUTOPERFORANTI 5.5X 60 TC+ DIN 7504-N ZINCATE Cr.3 46000.0
041.55700ZN VITI AUTOPERFORANTI 5.5X 70 TC+ DIN 7504-N ZINCATE Cr.3 52500.0
041.63190ZN VITI AUTOPERFORANTI 6.3X 19 TC+ DIN 7504-N ZINCATE Cr.3 8000.0
041.63220ZN VITI AUTOPERFORANTI 6.3X 22 TC+ DIN 7504-N ZINCATE Cr.3 4000.0
041.63250ZN VITI AUTOPERFORANTI 6.3X 25 TC+ DIN 7504-N ZINCATE Cr.3 9750.0
041.63320ZN VITI AUTOPERFORANTI 6.3X 32 TC+ DIN 7504-N ZINCATE Cr.3 53940.0
041.63380ZN VITI AUTOPERFORANTI 6.3X 38 TC+ DIN 7504-N ZINCATE Cr.3 54800.0
041.63450ZN VITI AUTOPERFORANTI 6.3X 45 TC+ DIN 7504-N ZINCATE Cr.3 54950.0
041.63500ZN VITI AUTOPERFORANTI 6.3X 50 TC+ DIN 7504-N ZINCATE Cr.3 32250.0
041.63600ZN VITI AUTOPERFORANTI 6.3X 60 TC+ DIN 7504-N ZINCATE Cr.3 18600.0
041.63700ZN VITI AUTOPERFORANTI 6.3X 70 TC+ DIN 7504-N ZINCATE Cr.3 37590.0
041.63800ZN VITI AUTOPERFORANTI 6.3X 80 TC+ DIN 7504-N ZINCATE Cr.3 10800.0
041.63900ZN VITI AUTOPERFORANTI 6.3X 90 TC+ DIN 7504-N ZINCATE Cr.3 15000.0
041.63A100ZN VITI AUTOPERFORANTI 6.3X100 TC+ DIN 7504-N ZINCATE Cr.3 15410.0
