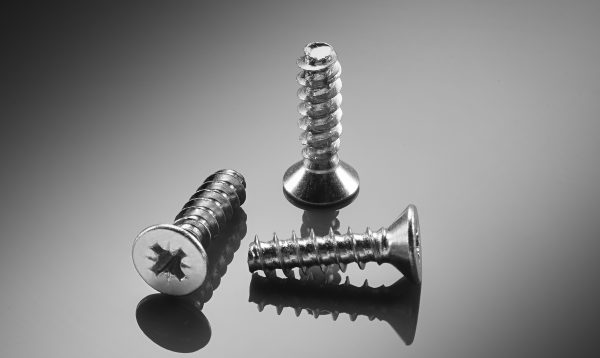

KLT PLASTIC-FIX 30 ° COUNTERSUNK HEAD SCREWS POZI CROSS WITHOUT POINT
The KLT Plastic-Fix 30 ° screw is the universal screw we have made for various types of thermoplastic materials. The 30 ° thread allows minimal screwing efforts with consequent reduction of heating of the material on which the product is used. This peculiarity of the screw allows to create a suitable seat to achieve an optimal seal even in the presence of thermoplastic materials heavily loaded with fiberglass or carbon. On softer materials the flow of plastic that is directed into the profile of the stem guarantees a self-locking function, and this happens thanks to the particular profile of the truncated cone core. It is proven that screws with threads of higher grades (such as the typical 40 ° of the chipboard and the 60 ° of the self-tapping, even if with trilobate profiles) do not have the same mechanical characteristics as this screw. Threads with profiles at 20 ° -25 ° rather than innovative, as they are often defined, are extremely harmful in that they can create breaking triggers in products particularly loaded with fiber; moreover, the profile of the crest of these screws does not have the same sealing capacity as that of 30 °, as it is too thin and not very resistant to tearing and stress. Plastic-Fix screws are able to adapt perfectly to the high expansions due to temperature variations which this type of material can undergo.

The length of the screw is calculated by measuring the screw including the head.

Code Description Availability Certifications Request offer
116.25010ZN VITI PLASTIC-FIX PLASTICA FIL.30°2.5X10 TS+ POZI S.PUNTA ZINCATE 0.0
116.25012ZN VITI PLASTIC-FIX PLASTICA FIL.30°2.5X12 TS+ POZI S.PUNTA ZINCATE 23930.0
116.30008ZN VITI X PLASTICA FIL.30° 3X 8 TS+ POZI S.PUNTA ZINCATE Cr.3 0.0
116.35008ZN VITI PLASTIC-FIX PLASTICA FIL.30°3.5X 8 TS+ POZI S.PUNTA ZINCAT 15000.0
116.55020ZN VITI PLASTIC-FIX PLASTICA FIL.30° 5.5X20 TS+ POZI S.PUNTA ZINCA 0.0
