312TX

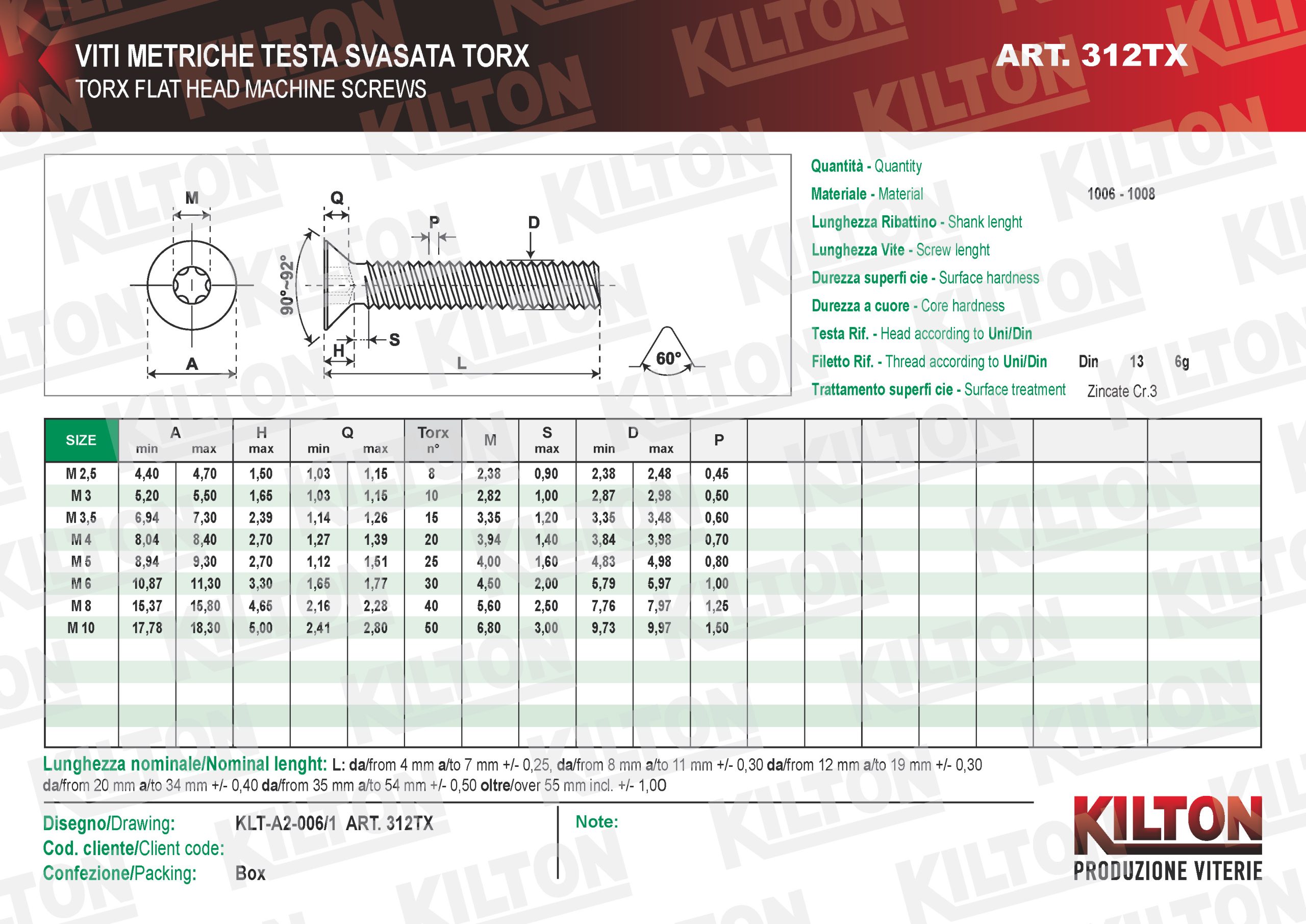

TORX FLAT HEAD MACHINE SCREWS
The use of Torx allows to transmit a higher tightening torque than other impressions. It is a universal type of impression, unlike the specific ones that are used in the various countries of the world (cross, philips, pozi, slotted, square impressions and so on). Torx is particularly suitable for diameters from 4 upwards; applying it on smaller diameters is not particularly recommended as the reduced depth of the impression with respect to a cross can create problems during assembly. Precisely for this reason, if they are not mounted perfectly in line with the holes and with the screwdriver, the insert could escape from the screw seat.

Code Description Availability Certifications Request offer
312TX.0312ZN VITI M 3X12 TS TORX T10 DIN 965 ZINCATE Cr.3 0.0
312TX.0318ZN VITI M 3X18 TS TORX T10 DIN 965 ZINCATE Cr.3 0.0
312TX.0322ZN VITI M 3X22 TS TORX T10 DIN 965 ZINCATE Cr.3 0.0
312TX.0406ZN VITI M 4X 6 TS TORX T20 DIN 965 ZINCATE Cr.3 0.0
312TX.0407ZN VITI M 4X 7 TS TORX T20 DIN 965 ZINCATE Cr.3 0.0
312TX.0510ZN VITI M 5X10 TS TORX T25 DIN 965 ZINCATE Cr.3 0.0
312TX.0516ZN VITI M 5X16 TS TORX T25 UNI 7688 - DIN 965 ZINCATE Cr.3 0.0
312TX.0530OT VITI M 5X30 TS TORX T25 DIN 965 OTTONATE 4000.0
312TX.0860ZN VITI M 8X60 TS TORX DIN 965 ZINCATE Cr.3 0.0
